For Parker P315 series (Originals): 100% Interchangeable

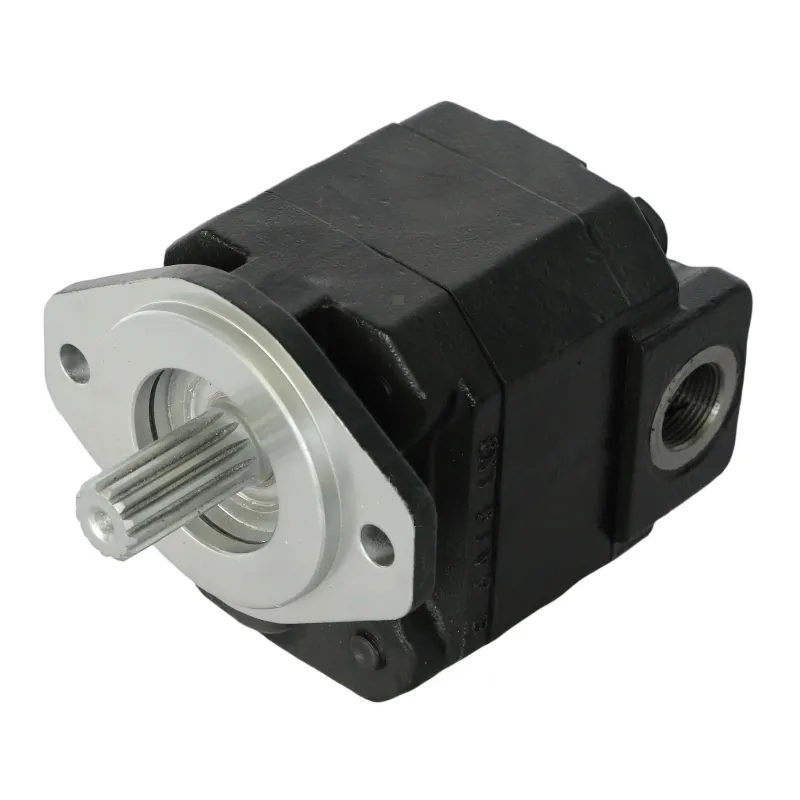

KC-P5 Series is a 100% Direct Replacement for Parker P315 Series hydraulic pumps, offering the following key advantages:

Seamless Compatibility: Direct replacement without system modifications, significantly reducing costs and downtime.

Warranty Assurance: Comes with a 12-month warranty, matching OEM reliability standards.

High Performance:KC-P5 fixed-displacement gear pump boasts a maximum working pressure of 241bar (3500psi) and a speed up to 3000rpm. With a top flow of 121lpm (32gpm) and 98% volumetric efficiency, it delivers reliable high-pressure performance. Its cast iron construction and balanced thrust plate ensure durability and low leakage.

Wide Applicability:aerospace (power steering), agricultural machinery (tire trucks, salt spreaders), construction/forestry equipment (aerial lifts, excavators), material handling (forklifts, cranes), and oil & gas (drilling rigs).

Product Brochure

Get Optimal Quote

Specific Model & Advantages

KC-P505/KC-P508/KC-P510/KC-P512/KC-P512/KC-P516/KC-P518/KC-P520/KC-P525/KC-P530/KC-P533/KC-P535/KC-P540

100% Interchangeable Replacement | For Parker P505/P508/P510/P512/P512/P516/P518/P520/P525/P530/P533/P535/P540

The Parker P315 is a fixed-displacement gear pump featuring max working pressure of 241bar (3500psi), speed up to 3000rpm, top flow of 121lpm (32gpm), and 98% volumetric efficiency; its cast iron build ensures durability, and it is fully replaceable by the KC-P5 series.

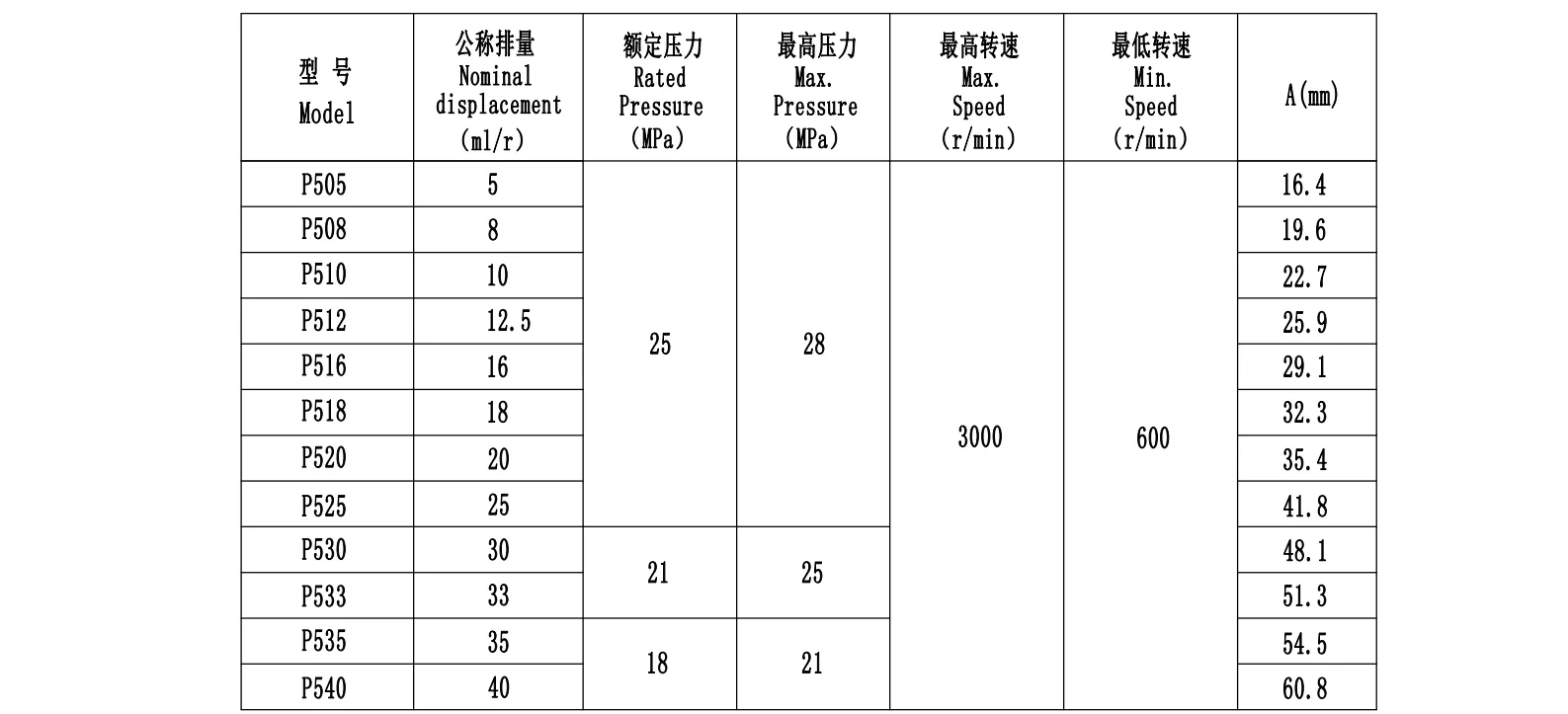

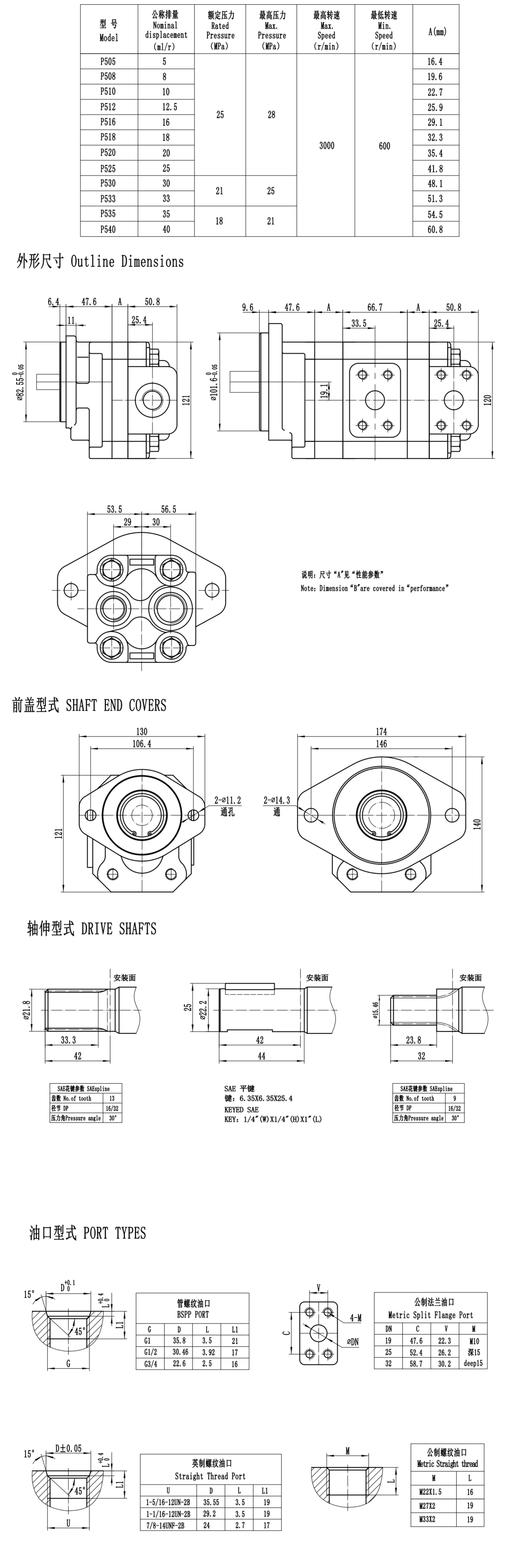

Technical Specifications

KC- Parsle-P5-In-house brand-Three-stage cast iron pump series gear pump

Application

Construction Equipment

In Caterpillar 320D excavators, the Parker P315 hydraulic pump can be used to power the hydraulic systems that control arm, bucket, and boom movements, providing the necessary pressure and flow for digging and material handling operations.

Agricultural Machinery

For John Deere 8R tractors, the Parker P315 hydraulic pump can assist in operating hydraulic - driven implements such as plows, seeders, and sprayers, ensuring smooth and efficient power transmission.

Material Handling Equipment

In Toyota 7FB series forklifts, the Parker P315 hydraulic pump helps in the lifting and tilting functions of the mast, enabling the safe and efficient handling of pallets and loads.
