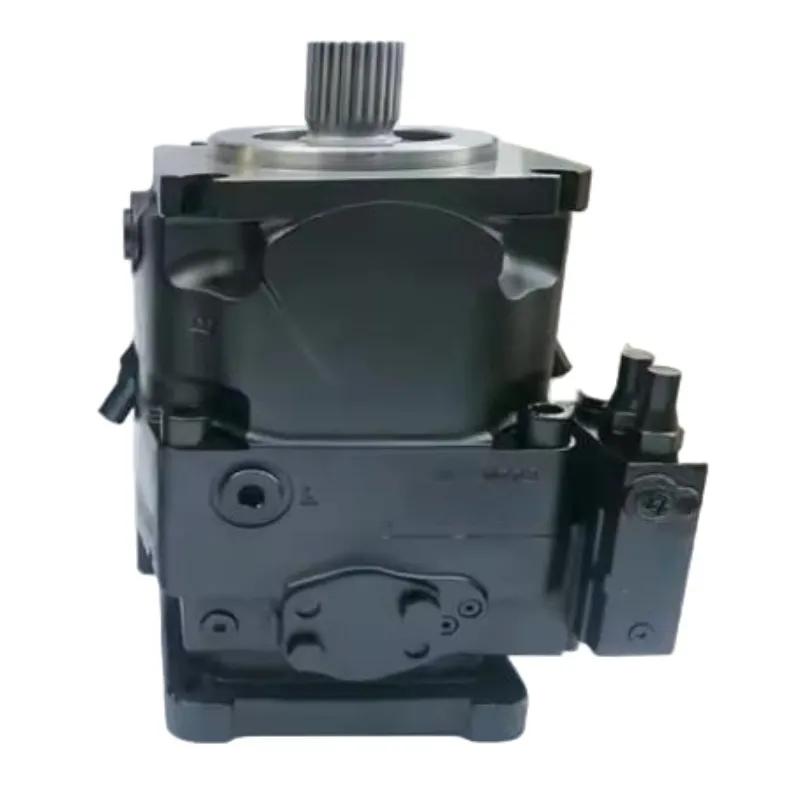

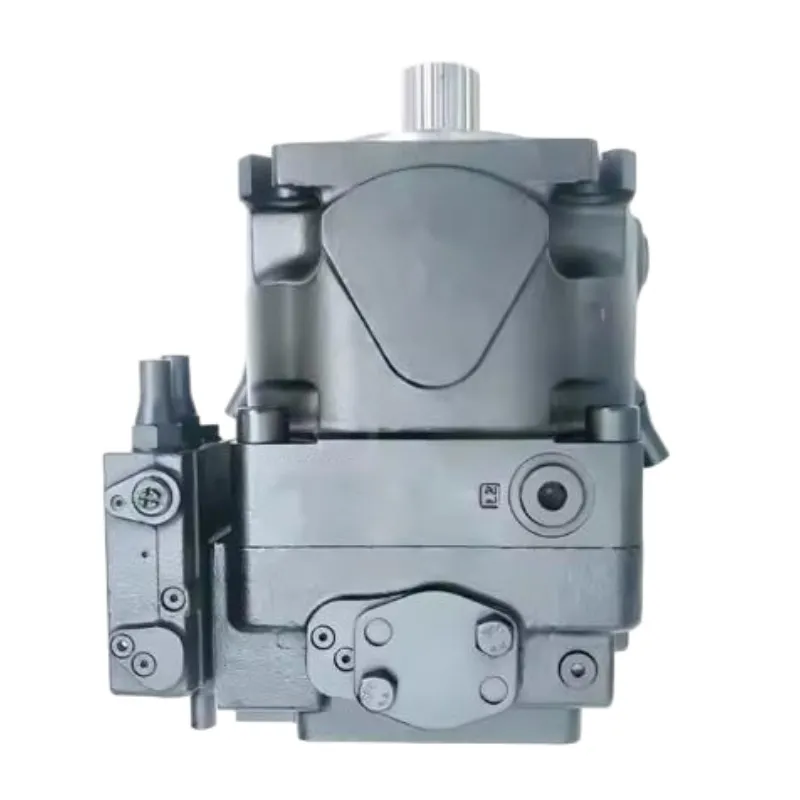

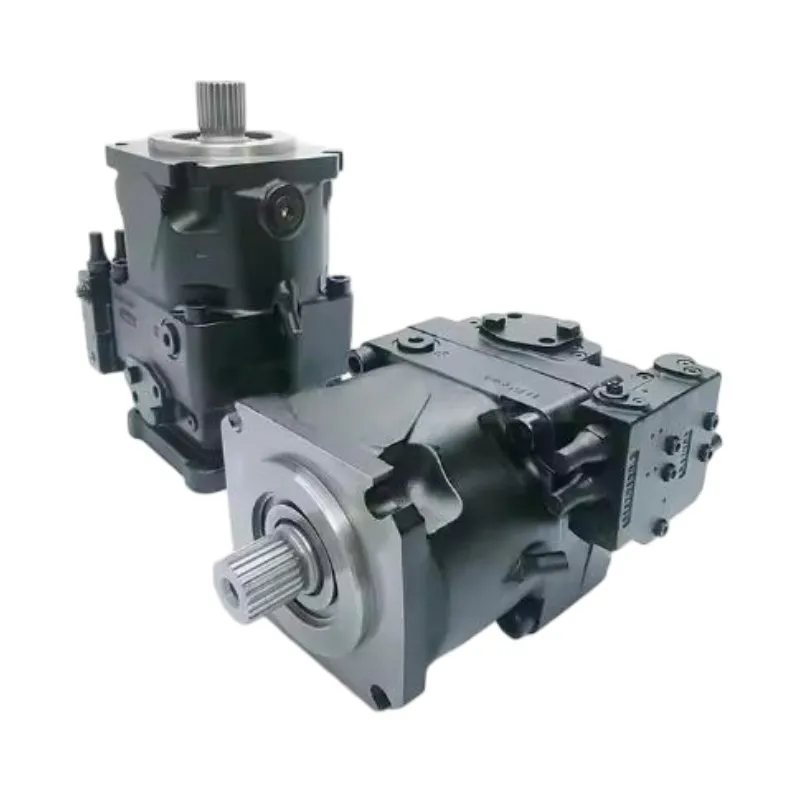

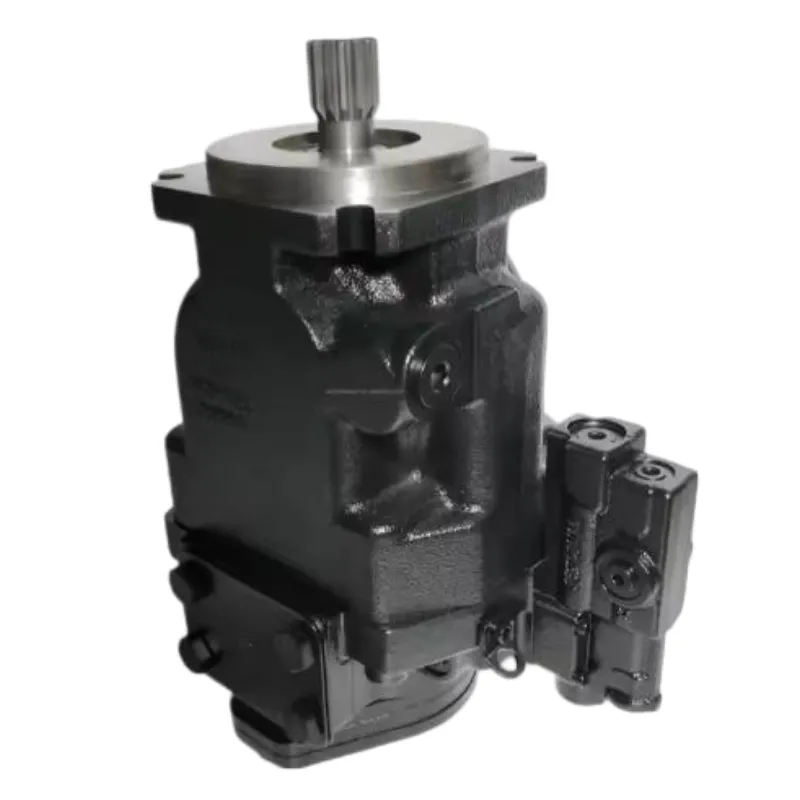

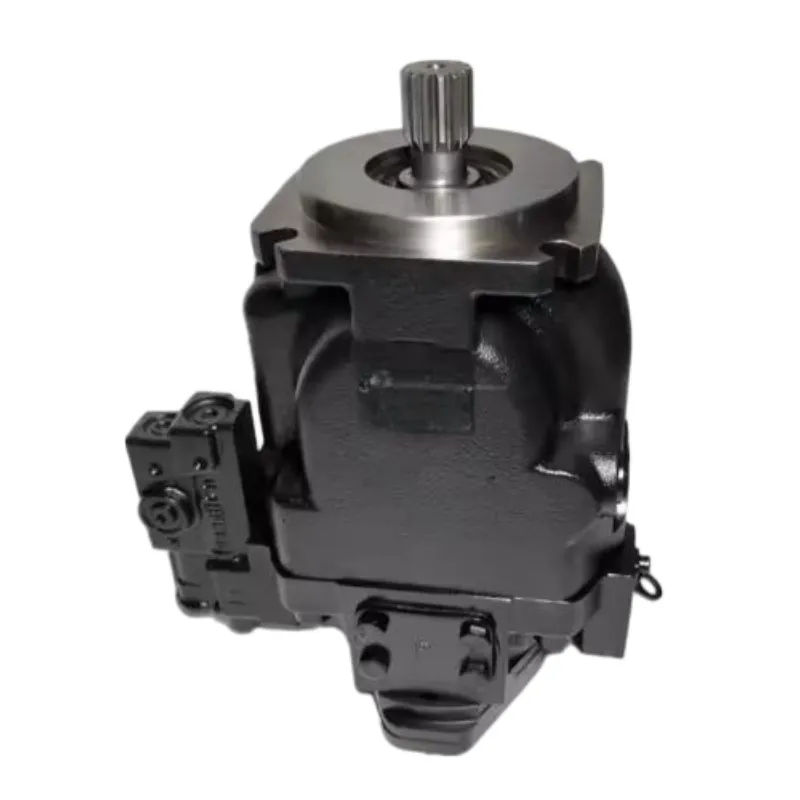

Axial Piston Variable Pump
KC-D1 Series is a 100% Direct Replacement for Danfoss D1 Series hydraulic pumps, offering the following key advantages:
Seamless Compatibility: Direct replacement without system modifications, significantly reducing costs and downtime.
Warranty Assurance: Comes with a 12-month warranty, matching OEM reliability standards.
High Performance:KC-D1 series is a heavy-duty open-circuit axial piston pump. It features strong self-priming capability, high efficiency, robust design, and flexible servo control for reliable operation under heavy loads.
Wide Applicability:open-circuit hydraulic systems in heavy-duty vehicles, concrete machinery, mining equipment, and other industrial heavy-load scenarios.
Specific Model & Advantages
KC-D1 130cc/KC-D1 145cc/KC-D1 193cc/KC-D1 260cc
100% Interchangeable Replacement | For Danfoss D1 130cc/D1 145cc/D1 193cc/D1 260cc
The Danfoss D1 series, a heavy-duty open-circuit axial piston pump, delivers strong self-priming, high efficiency, robust design and flexible servo control; it can be fully replaced by KC-D1.
Technical Data
Type | Displacementcm³/rev | Operating pressure up to bar | Peakpressure bar | Max speedRmp | Shaft Type | Control Method |
D1 130cc | 130 | 350 | 400 | 2000 | Splined shaft | PC、FC、TC |
D1 145cc | 145 | 350 | 400 | 1800 | Splined shaft | PC、FC、TC |
D1 193cc | 193 | 350 | 400 | 1600 | Splined shaft | PC、FC、TC |
D1 260cc | 260 | 350 | 400 | 1400 | Splined shaft | PC、FC、TC |
Applications
Construction: Hydraulic pumps (e.g., Danfoss D1) power Komatsu PC200-8 excavators (arm/bucket actuation) & Liugong CLG856H wheel loaders (lift arm operation)
Mining: Pumps like Danfoss D1 drive Caterpillar 349F L mining excavators (boom lifting) & SDLG E6460F mining loaders (bucket tilting)
Concrete Machinery: Danfoss D1 hydraulic pumps equip Zoomlion ZLJ5330THB concrete pumps (boom extension) & Sany SY5418THB concrete boom pumps (material pushing)
